HT46R46E Datasheet - Holtek Semiconductor

Cost-Effective A/D Type 8-Bit MCU

HT46R46E Features

* Operating voltage: fSYS=4MHz: 2.2V~5.5V fSYS=8MHz: 3.3V~5.5V

* 13 to 23 bidirectional I/O lines

* External interrupt input shared with an I/O line

* 8-bit programmable Timer/Event Counter with over- flow interrupt and 7-stage prescaler

* On-chip crystal and RC oscillator

HT46R46E General Description

The Cost-Effective A/D Type MCU Devices are a series of 8-bit high performance RISC architecture microcontrollers, designed especially for applications that interface directly to analog signals, such as those from sensors. All devices include an integrated multi-channel Analog to Digital Converter i.

HT46R46E Datasheet (587.80 KB)

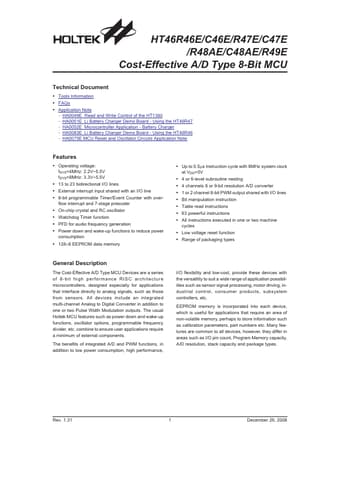

HT46R46E Datasheet Preview — Preview of HT46R46E PDF

Datasheet Details

Part number:

HT46R46E

Manufacturer:

Holtek Semiconductor

File Size:

587.80 KB

Description:

Cost-effective a/d type 8-bit mcu.
HT46R46E/C46E/R47E/C47E /R48AE/C48AE/R49E Cost-Effective A/D Type 8-Bit MCU Technical Document Tools Information FAQs Application N.
