HT46R47

Cost-Effective A/D Type 8-Bit MCU

HT46R47 Features

* Operating voltage:

* Up to 0.5ms instruction cycle with 8MHz system clock fSYS=4MHz: 2.2V~5.5V fSYS=8MHz: 3.3V~5.5V

* 13 bidirectional I/O lines (max.)

* 1 interrupt input shared with an I/O line

* 8-bit programmable timer/event counter with overflow at VDD=5V

* 4-level s

HT46R47 General Description

The HT46R46/HT46C46 and HT46R47/HT46C47 are 8 -b it , hi g h p e r f or m a n c e, R I S C a r c h i t e ct u r e microcontroller devices specifically designed for A/D applications that interface directly to analog signals, such as those from sensors. The mask version HT46C46, HT46C47 are fully pin .

HT46R47 Datasheet (581.14 KB)

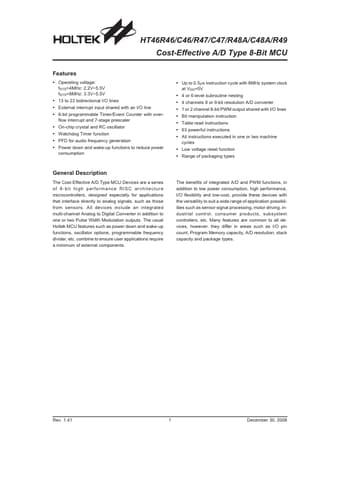

Preview of HT46R47 PDF

Datasheet Details

Part number:

HT46R47

Manufacturer:

Holtek Semiconductor

File Size:

581.14 KB

Description:

Cost-effective a/d type 8-bit mcu.
