HT48R10A-1

I/O Type 8-Bit MCU

HT48R10A-1 Features

* Operating voltage:

* 64´8 data memory RAM

* Buzzer driving pair and PFD supported

* HALT function and wake-up feature reduce power fSYS=4MHz: 2.2V~5.5V fSYS=8MHz: 3.3V~5.5V

* Low voltage reset function

* 21 bidirectional I/O lines (max.)

* 1 interrupt input shared with

HT48R10A-1 General Description

The HT48R10A-1/HT48C10-1 are 8-bit high performance, RISC architecture microcontroller devices specifically designed for multiple I/O control product applications. The mask version HT48C10-1 is fully pin and functionally compatible with the OTP version HT48R10A-1 device. www.DataSheet.net/ The adv.

HT48R10A-1 Datasheet (357.85 KB)

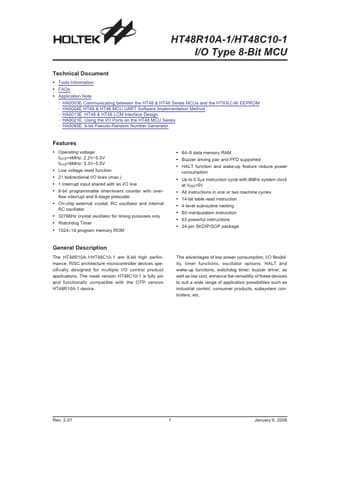

Preview of HT48R10A-1 PDF

Datasheet Details

Part number:

HT48R10A-1

Manufacturer:

Holtek Semiconductor

File Size:

357.85 KB

Description:

I/o type 8-bit mcu.
HT48R10A-1/HT48C10-1 I/O Type 8-Bit MCU Technical Document
* Tools Information
* FAQs
* Application Note - HA0003E Communicating between .
