HT7550-2 100mA Low Power LDO

The HT75XX-2 series is a set of three-terminal low power high voltage implemented in CMOS technology. They can deliver 100mA output current and allow an input voltage as high as 24V. They are available with several fixed output voltages ranging from 2.1V to 12.0V. CMOS technology ensures low voltage.

HT7550-2 Features

* Low power consumption

* Low voltage drop

* Low temperature coefficient

* High input voltage (up to 24V)

* High output current : 100mA

* Output voltage accuracy: tolerance ±1%

* TO92, SOT89 and SOT23-5 packages Applications

* Battery-powered equipment

* Communic

HT75xx-2_HoltekSemiconductor.pdf

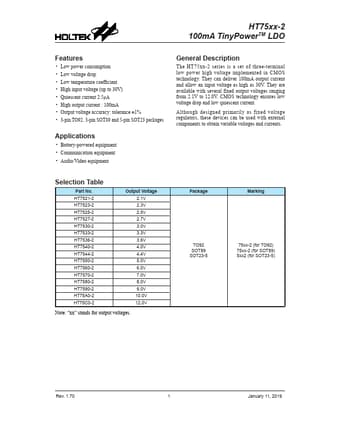

HT7550-2 Datasheet Preview — This datasheet PDF includes multiple part numbers: HT7550-2, HT75xx-2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HT7550-2, HT75xx-2

Manufacturer:

Holtek Semiconductor

File Size:

381.25 KB

Description:

100ma low power ldo.

Note:

This datasheet PDF includes multiple part numbers: HT7550-2, HT75xx-2.
Please refer to the document for exact specifications by model.
