HT7550-7

100mA TinyPower LDO

HT7550-7 Features

* Low power consumption

* Low voltage drop

* Low temperature coefficient

* High input voltage

* up to 30V

* Output voltage accuracy: tolerance ±2%

* Over current protection

* Over temperature protection

* Chip enable/disable fun

HT7550-7 General Description

The HT75xx-7 is a low power high voltage series of regulators implemented in CMOS technology which has the advantages of low voltage drop and low quiescent current. They allow input voltages as high as 30V and are available with several fixed output voltages ranging from 2.1V to 12.0V. When the CE i.

HT7550-7 Datasheet (1.56 MB)

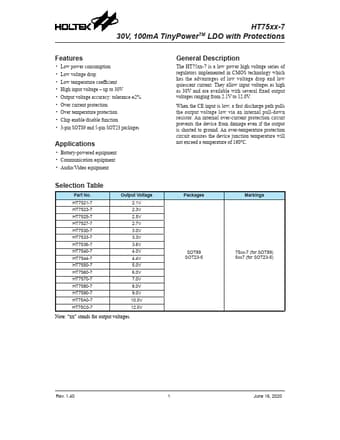

Preview of HT7550-7 PDF

Datasheet Details

Part number:

HT7550-7

Manufacturer:

Holtek Semiconductor

File Size:

1.56 MB

Description:

100ma tinypower ldo.
