HT9282

(HT9281 - HT9284) TinyPower Operation Amplifier

HT9282 Features

* Operating Voltage: 2.0V to 5.5V

* Supply Current: 220mA/amplifier typical

* Rail-to-Rail Output

* Gain Bandwidth: 2.3MHz typical

* Unity Gain Stable

* Available in Single, Dual and Quad Op¢s package www.DataSheet4U.com types

* Package type: HT9281: TSOT23-5 HT9282: 8

HT9282 General Description

The Holtek HT9281/HT9282/HT9284 range of Operational Amplifiers operate with a single supply voltage as low as 2.0V and offer a low supply current of only 220mA/amplifier. In offering rail-to-rail output voltage the devices can operate with a maximum voltage range. The devices also provide a gain ba.

HT9282 Datasheet (161.53 KB)

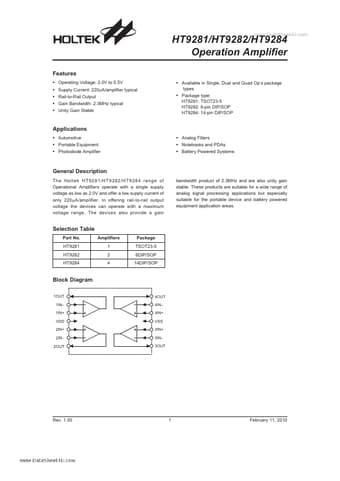

Preview of HT9282 PDF

Datasheet Details

Part number:

HT9282

Manufacturer:

Holtek Semiconductor

File Size:

161.53 KB

Description:

(ht9281 - ht9284) tinypower operation amplifier.
