HT95C200 - (HT95C200/20P/300/30P) 8-Bit CID Type Phone Controller MCU

Holtek Semiconductor

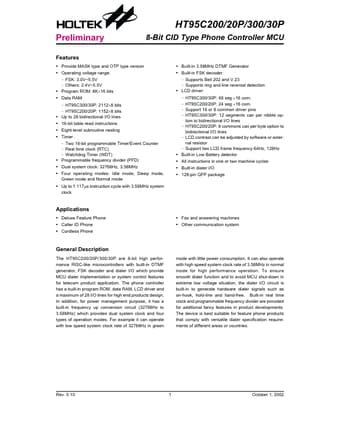

HT95C200 Datasheet Preview — Preview of HT95C200 PDF

Datasheet Details

Part number	HT95C200
Manufacturer	Holtek Semiconductor
File Size	324.45 KB
Description	(HT95C200/20P/300/30P) 8-Bit CID Type Phone Controller MCU
Datasheet	HT95C200_HoltekSemiconductor.pdf

HT95C200 Product details

Description

The HT95C200/20P/300/30P are 8-bit high performance RISC-like microcontrollers with built-in DTMF generator, FSK decoder and dialer I/O which provide MCU dialer implementation or system control

Features

Provide MASK type and OTP type version.
Operating voltage range: - FSK: 3.0V~5.5V - Others: 2.4V~5.5V.
Program ROM: 8K´16 bits.
Data RAM: - HT95C300/30P: 2112´8 bits - HT95C200/20P: 1152´8 bits.
Built-in 3.58MHz DTMF Generator.
Built-in FSK decoder: - Supports Bell 202 and V.23 - Supports ring and line reversal detection.
LCD driver: - HT95C300/30P: 48 seg. ´16 com. - HT95C200/20P: 24 seg. ´16 com. - Support 16 or 8 common driver pins - HT95C300/30P: 12 segments.
