HT9011

FM IF Detector

Holtek Semiconductor Inc

HT9011 Features

* HT9011 FM IF Detector

* Operating voltage: 1.1V~3.5V Constant power supply voltage can be generated by externally adding a transistor: VREG=1.0V typ. Alarm function sensitivity: VALM=1.1V typ. Low current consumption: ICCQ=1.1mA typ. Built-

HT9011 General Description

The HT9011 is designed for FM communication system devices. It combines a paging system, mixer, IF limiter, Quadrature detector, operation amplifier, comparator and more. The HT9011 could provide the customer¢s PAGER system with total solution along with Holtek¢s POCSAG Pager Controller series produ.

HT9011 Datasheet (98.26 KB)

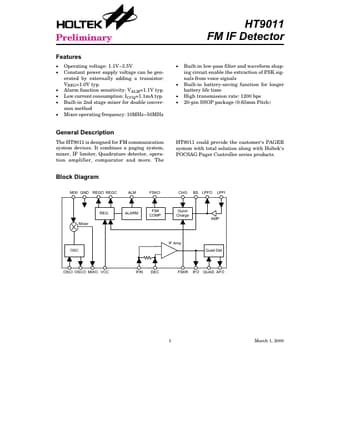

HT9011 Datasheet Preview — Preview of HT9011 PDF

Datasheet Details

Part number:

HT9011

Manufacturer:

Holtek Semiconductor Inc

File Size:

98.26 KB

Description:

Fm if detector.
