HT9015

RF Single Chip for Cordless Phone

HT9015 Features

* RF Single Chip for Cordless Phone

* HT9015

* Operating voltage: 2.7V~6V Extremely low power consumption current - I CC= 0mA (typ.) in battery-saving mode - I CC= 8.5mA (typ.) in standby mode - I CC= 13.5mA (typ.) for communication Built-in IF decoder, compander an

HT9015 General Description

The HT9015 is an RF single chip for cordless phone systems. Internally these are three major parts, a PLL, an IF decoder and a compander. The PLL provides radio channel selection for either the transmitter or receiver. Frequency locking status of the selected channel can be monitored by a control re.

HT9015 Datasheet (206.24 KB)

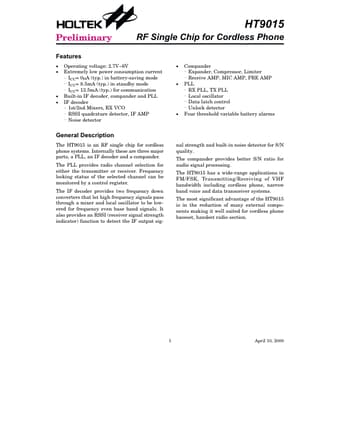

Preview of HT9015 PDF

Datasheet Details

Part number:

HT9015

Manufacturer:

Holtek Semiconductor Inc

File Size:

206.24 KB

Description:

Rf single chip for cordless phone.
