HT9170D - DTMF Receiver

Product Overview

Holtek Semiconductor Inc

Datasheet Details

Part number	HT9170D
Manufacturer	Holtek Semiconductor Inc
File Size	128.62 KB
Description	DTMF Receiver
Datasheet	HT9170D Datasheet
Additional preview pages of the HT9170D datasheet.

Product details

Description

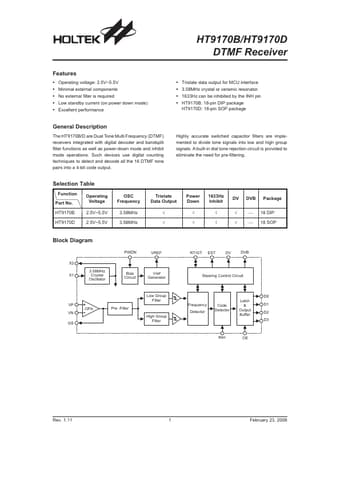

The HT9170B/D are Dual Tone Multi Frequency (DTMF) receivers integrated with digital decoder and bandsplit filter functions as well as power-down mode and inhibit mode operations.

Features

Operating voltage: 2.5V~5.5V.
Minimal external components.
No external filter is required.
Low standby current (on power down mode).
Excellent performance.
Tristate data output for MCU interface.
3.58MHz crystal or ceramic resonator.
1633Hz can be inhibited by the INH pin.
HT9170B: 18-pin DIP package HT9170D: 18-pin SOP package General.
