HT9020 - Call Progress Tone Decoder & ABR Controller

Datasheet Summary

Description

The HT9020 provides two modes; Call progress tone decoder and Busy redial controller, to support the application fields.

This feature detects a specified input signal and then outputs relative envelopes during a 2.32sec interval.

Features

  • Low cost 32768Hz crystal Low power consumption Operating voltage: 2.5V to 5.5V (CPT mode) 2.0V to 5.5V (ABR mode) Call progress tone decoder.
  • Fully decoded tristate call progress status output.
  • Works with traditional precision or PBX call progress tones Busy redial controller.
  • Repeat times: 3, 10 or 15 times ( 2, 5, 15 times by mask option).
  • 4.65, 32.6 and 62.8 sec break time (16.3sec by mask option).

📥 Download Datasheet

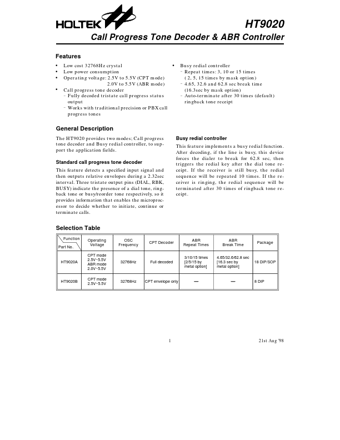

Datasheet preview – HT9020

Datasheet Details

Part number HT9020
Manufacturer Holtek Semiconductor
File Size 502.89 KB
Description Call Progress Tone Decoder & ABR Controller
Datasheet download datasheet HT9020 Datasheet
Additional preview pages of the HT9020 datasheet.

📁 Similar Datasheet

  • HT9011 - FM IF Detector (Holtek Semiconductor Inc)
  • HT9015 - RF Single Chip for Cordless Phone (Holtek Semiconductor Inc)
  • HT9030 - Calling Line Identification Receiver (Holtek Microelectronics)
  • HT9032 - Calling Line Identification Receiver (Holtek Semiconductor Inc)
  • HT9032C - (HT9032C / HT9032D) Calling Line Identification Receiver (Holtek)
  • HT9032D - (HT9032C / HT9032D) Calling Line Identification Receiver (Holtek)
  • HT9170 - DTMF Receiver (Holtek Semiconductor Inc)
  • HT9170B - DTMF Receiver (Holtek Semiconductor Inc)
  • HT9170D - DTMF Receiver (Holtek Semiconductor Inc)
  • HT91808 - 96kHz Stereo ADC (Heroic)
Other Datasheets by Holtek Semiconductor
  • HT9020B - Call Progress Tone Detector
  • HT9142 - FM IF Detector
  • HT9172 - DTMF Receiver
  • HT9201A - (HT9201A/B) Simple Tone Dialer
  • HT9201B - (HT9201A/B) Simple Tone Dialer
  • HT9205A - 5-Memory/6-Memory Tone/Pulse Dialer
  • HT9205B - 5-Memory/6-Memory Tone/Pulse Dialer
  • HT9205C - 5-Memory/6-Memory Tone/Pulse Dialer

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com HT9020 Call Progress Tone Decoder & ABR Controller Features • • • • • Low cost 32768Hz crystal Low power consumption Operating voltage: 2.5V to 5.5V (CPT mode) 2.0V to 5.5V (ABR mode) Call progress tone decoder – Fully decoded tristate call progress status output – Works with traditional precision or PBX call progress tones Busy redial controller – Repeat times: 3, 10 or 15 times ( 2, 5, 15 times by mask option) – 4.65, 32.6 and 62.8 sec break time (16.3sec by mask option) – Auto-terminate after 30 times (default) ringback tone receipt General Description The HT9020 provides two modes; Call progress tone decoder and Busy redial controller, to support the application fields.
