HT9032

Calling Line Identification Receiver

HT9032 Features

* HT9032 HT9032B/C/D operating voltage: 3.5V~5.5V HT9032F operating voltage: 3.0V~5.5V Bell 202 FSK and V.23 demodulation Ring detection input and output Carrier detection output

* Power down mode High input sensitivity HT9032C: 16-pin DIP/SOP package HT9032

HT9032 General Description

The HT9032 calling line identification receiver is a low power CMOS integrated circuit designed for receiving physical layer signals transmitted according to Bellcore TR-NWT-000030 and ITU-T V.23 specifications. The primary application of this device is for products used to receive and display the c.

HT9032 Datasheet (148.84 KB)

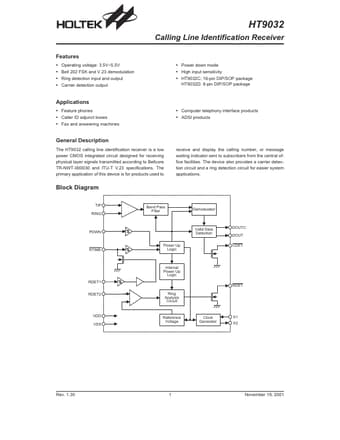

Preview of HT9032 PDF

Datasheet Details

Part number:

HT9032

Manufacturer:

Holtek Semiconductor Inc

File Size:

148.84 KB

Description:

Calling line identification receiver.
