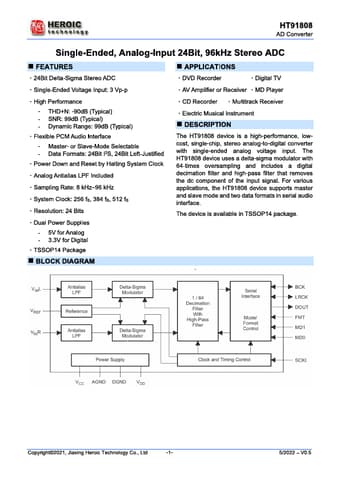

HT91808 96kHz Stereo ADC

The HT91808 device is a high-performance, lowcost, single-chip, stereo analog-to-digital converter with single-ended analog voltage input. The HT91808 device uses a delta-sigma modulator with 64-times oversampling and includes a digital decimation filter and high-pass filter that removes the dc comp.

HT91808 Features

* 24Bit Delta-Sigma Stereo ADC

* APPLICATIONS DVD Recorder Digital TV Single-Ended Voltage Input: 3 Vp-p AV Amplifier or Receiver MD Player High Performance - THD+N: -90dB (Typical) - SNR: 99dB (Typical) - Dynamic Range: 99dB (Typical) Flexible PCM Audio Interface - Master- or Slave-Mode Sele
