HT97220L - Headphone amplifier/line driver

Product Overview

📥 Download Datasheet

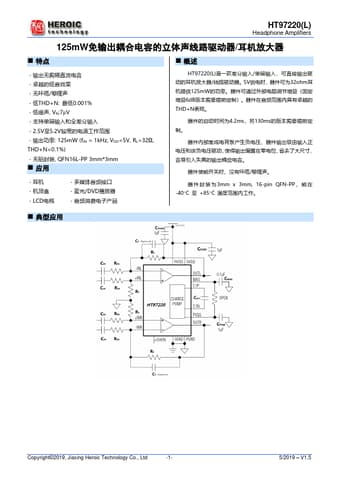

Datasheet preview – HT97220L

Datasheet Details

Part number HT97220L
Manufacturer Heroic
File Size 604.38 KB
Description Headphone amplifier/line driver
Datasheet download datasheet HT97220L Datasheet
Note This datasheet PDF includes multiple part numbers: HT97220L, HT97220.
Please refer to the document for exact specifications by model.
Additional preview pages of the HT97220L datasheet.

Product details

Description

Direct Drive Outputs Eliminate DC-Blocking Capacitors, Save Space Excellent Bass Fidelity Shutdown and Startup without any Click-Pop Noise Exceptional Low THD+N: 0.001% Minimum Absolutely Low Noise Performance VN: 7μV Differential or Single-Ended Input Wide 2.5V to 5.2V Operating Range Output Power: 125mW (fIN = 1kHz, VDD=5V, RL=32Ω, THD+N=1%); Pb Free Packages, QFN16L-PP 3mm 3mm, Extremely Simple BOM Needed APPLICATIONS HeadphonesSimple Multimedia Interfaces Set-Top Boxes Blue-ray an
