HT97220 - Headphone amplifier/line driver

Product Overview

Heroic

Datasheet Details

Part number	HT97220
Manufacturer	Heroic
File Size	604.38 KB
Description	Headphone amplifier/line driver
Datasheet	HT97220 Datasheet

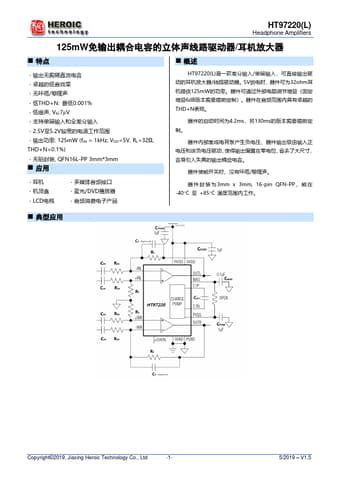

Additional preview pages of the HT97220 datasheet.

Product details

Description

Direct Drive Outputs Eliminate DC-Blocking Capacitors, Save Space Excellent Bass Fidelity Shutdown and Startup without any Click-Pop Noise Exceptional Low THD+N: 0.001% Minimum Absolutely Low Noise Performance VN: 7μV Differential or Single-Ended Input Wide 2.5V to 5.2V Operating Range Output Power: 125mW (fIN = 1kHz, VDD=5V, RL=32Ω, THD+N=1%); Pb Free Packages, QFN16L-PP 3mm 3mm, Extremely Simple BOM Needed APPLICATIONS HeadphonesSimple Multimedia Interfaces Set-Top Boxes Blue-ray an

Features

liminate DC-Blocking Capacitors, Save Space Excellent Bass Fidelity Shutdown and Startup without any Click-Pop Noise Exceptional Low THD+N: 0.001% Minimum Absolutely Low Noise Performance VN: 7μV Differential or Single-Ended Input Wide 2.5V to 5.2V Operating Range Output Power: 125mW (fIN = 1kHz, VDD=5V, RL=32Ω, THD+N=1%); Pb Free Packages, QFN16L-PP 3mm.
3mm, Extremely Simple BOM Needed.
