HT97226

160mW CAP FREE STEREO HEADPHONE AMPLIFIER

HT97226 Features

* Direct Drive Outputs Eliminate DC-Blocking Capacitors, Save Space Excellent Bass Fidelity Shutdown and Startup without any Click-Pop Noise, ±50uV (typical) Vos Exceptional Low THD+N: 0.002% Minimum Absolutely Low Noise Performance VN: 8.5μV Differential or Single-Ended Input Wide 2.5V to 6V Operatin

HT97226 General Description

The HT97226 is a differential input Direct Drive headphone amplifier, which can also drive single-ended input signal. It is capable of being driven with 160mW into 32Ω with a 5V supply. The IC is offered with an externally set gain through external resistors. The external gain setting nodes can also.

HT97226 Datasheet (1.27 MB)

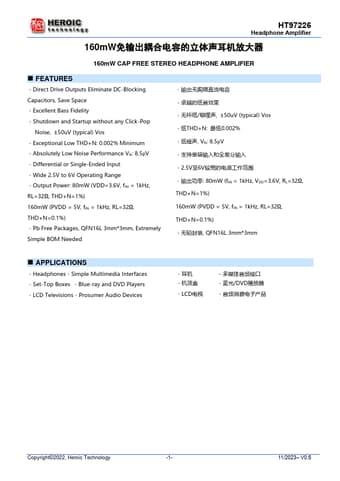

Preview of HT97226 PDF

Datasheet Details

Part number:

HT97226

Manufacturer:

Heroic

File Size:

1.27 MB

Description:

160mw cap free stereo headphone amplifier.
