HT9032C - (HT9032C / HT9032D) Calling Line Identification Receiver

Datasheet Summary

Description

The HT9032 calling line identification receiver is a low power CMOS integrated circuit designed for receiving physical layer signals transmitted according to Bellcore TR-NWT-000030 and ITU-T V.23 specifications.

Features

  • Operating voltage: 3.5V~5.5V.
  • Bell 202 FSK and V.23 demodulation.
  • Ring detection input and output.
  • Carrier detection output.
  • Power down mode.
  • High input sensitivity.
  • HT9032C: 16-pin SOP package HT9032D: 8-pin SOP package.

📥 Download Datasheet

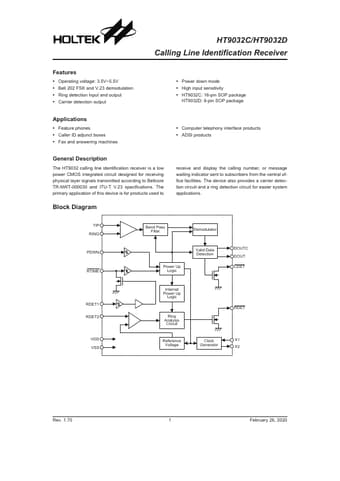

Datasheet preview – HT9032C
