HT9306 - (HT9305 / HT9306) 5-Memory Tone/Pulse Dialer

This page provides the datasheet information for the HT9306, a member of the HT9305 (HT9305 / HT9306) 5-Memory Tone/Pulse Dialer family.

Datasheet Summary

Description

The HT9305/6 series tone/pulse dialers are CMOS LSIs for telecommunication systems.

They are designed to meet various dialing specifications through resistor option matrix.

The HT9305/6 series tone/pulse dialers are offered in four different versions.

Features

  • Patent Number: 64097, 86474, 113235(R. O. C. ), 5424740(U. S. A. ).
  • Universal specification Operating voltage: 2.0V~5.5V Low standby current Low memory retention current: 0.1µA (Typ. ) Tone/pulse switchable Interface with LCD driver 32 digits for redialing 32 digits for the SA memory dialing One-key redialing Pause and P→ T.

📥 Download Datasheet

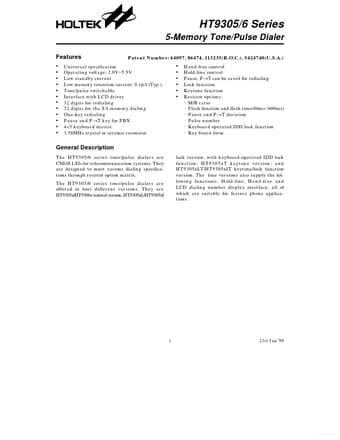

Datasheet preview – HT9306

Datasheet Details

Part number HT9306
Manufacturer Holtek
File Size 1.90 MB
Description (HT9305 / HT9306) 5-Memory Tone/Pulse Dialer
Datasheet download datasheet HT9306 Datasheet
Additional preview pages of the HT9306 datasheet.
