HT9302G - 1-Memory/2-Memory Tone/Pulse Dialer

HT9302G Description

HT9302 Series 1-Memory/2-Memory Tone/Pulse Dialer .
The HT9302 series tone/pulse dialers are CMOS LSIs for telecommunication systems.

HT9302G Features

* Universal specification
* Operating voltage: 2.0V~5.5V
* Low standby current
* Low memory retention current: 0.1mA (typ. )
* Tone/pulse switchable
* Interface with LCD driver
* 32 digits for redialing
* 32 digits for SA memory dialing
* One-key redialing
* Pa

HT9302G Applications

* HT9302G is simpler than HT9302X version. It provides only a redialing memory for simple low-cost system applications. Selection Table Function Part No. HT9302x HT9302A HT9302B HT9302C HT9302D HT9302G HT9302G ¾ ¾ Ö Ö Ö Ö ¾ Ö ¾ Ö Lock Function (Pin Selection) Hold Line Hand Free (Normal version) ¾ Ö

📥 Download Datasheet

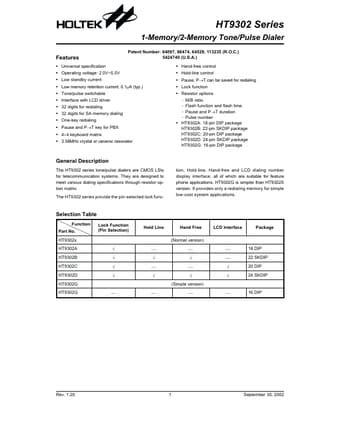

Preview of HT9302G PDF
