JA5088SL Datasheet, protection equivalent, Homestar

JA5088SL Features

  • Protection
  • Integrate low Rdson Power MOSFET
  • SOP8_ Package
  • Over-temperature Protection
  • Two-steps Over current protection
  • High-accuracy Voltage Detection

PDF File Details

Part number:

JA5088SL

Manufacturer:

Homestar

File Size:

413.82kb

Download:

📄 Datasheet

Description:

One cell lithium-ion/polymer battery protection. JA5088SL is a spacing saving single chip lithium-ion/polymer battery protection IC. Integrating power MOSFET and only two external co

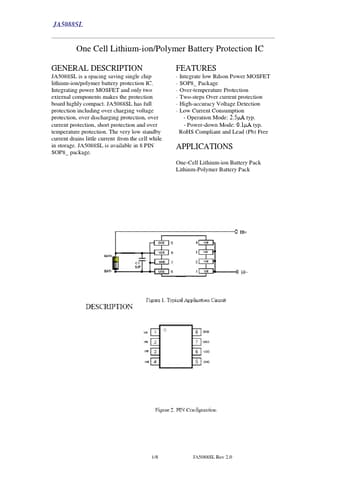

Datasheet Preview: JA5088SL 📥 Download PDF (413.82kb)
Page 2 of JA5088SL Page 3 of JA5088SL

JA5088SL Application

  • Applications One-Cell Lithium-ion Battery Pack Lithium-Polymer Battery Pack 1/8 JA5088SL Rev 2.0 JA5088SL Number 1,2,3,4 5,7,8 6 Name VM GND VD
