JA54130 - 4-Bit Micro Controller

Product Overview

Part number	JA54130
Manufacturer	Jaztek
File Size	214.81 KB
Description	4-Bit Micro Controller
Datasheet	JA54130 Datasheet

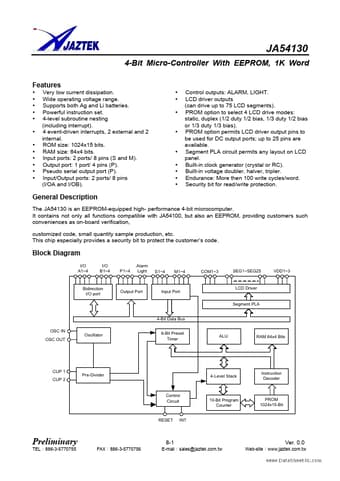

Additional preview pages of the JA54130 datasheet.

The JA54130 is an EEPROM-equipped high- performance 4-bit microcomputer. a6( 9''a %LGLUHFWLRQ ,2SRUW 2XWSXW3RUW ,QSXW3RUW /&''ULYH

Very low current dissipation. Wide operating voltage range. Supports both Ag and Li batteries. Powerful instruction set. 4-level subroutine nesting (including interrupt). y 4 event-driven interrupts, 2 external and 2 internal. y ROM size: 1024x15 bits. y RAM size: 64x4 bits. y Input ports: 2 ports/ 8 pins (S and M). y Output port: 1 port/ 4 pins (P). y Pseudo serial output port (P). y Input/Output ports: 2 ports/ 8 pins (I/OA and I/OB). y y y y y y Control outputs: ALARM, LIGHT. y.
