2AV54

Hall-Effect Vane Sensor

2AV54 Features

* q Protection against random voltage spikes q electrical transients up to +80 volts q reverse power supply to -80 volts q Stainless steel mounting studs lock sensor in place q Vane depth of 17.2 mm [0.68 in] allows flexibility in actuator placement q Wide Operating temperature range q Current sinking

2AV54 General Description

2AV Series Hall effect vane position sensors are specifically designed to translate the relative position of a ferrous metal actuator into a digital electronic signal. The Hall effect integrated circuit and the magnet are in a rugged plastic housing. When a ferrous metal actuator passes between them.

2AV54 Datasheet (64.73 KB)

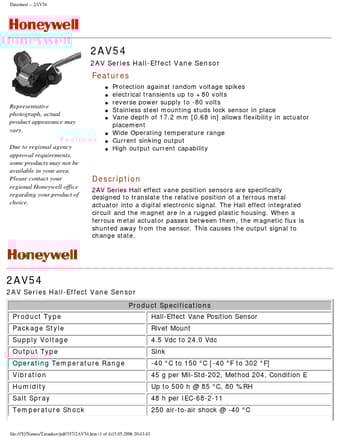

Preview of 2AV54 PDF

Datasheet Details

Part number:

2AV54

Manufacturer:

Honeywell

File Size:

64.73 KB

Description:

Hall-effect vane sensor.
Datasheet

* 2AV54 Representative photograph, actual product appearance may vary. Due to regional agency approval requirements, some products .
