CSLA1CD Linear Current Sensors

CSLA1CD Description

Solid State Sensors Linear Current Sensors .
Honeywell’s CSLW Series miniature, open-loop current sensors incorporate our SS490 Series miniature ratiometric linear Hall-effect sensor (MRL ).

CSLA1CD Features

* ɀ Linear output ɀ AC or DC current sensing ɀ Through-hole design ɀ Fast response time ɀ Output voltage isolation from input ɀ Minimum energy dissipation ɀ Maximum current limited only by conductor size ɀ Adjustable performance and built-in temperature compensation assures reliable operation ɀ Accura

CSLA1CD Applications

* with limited space Accurate, low-cost sensing Minimum energy dissipation Maximum current limited only by conductor size Built-in temperature compensation promotes reliable operation Operating temperature range -25 °C to 100 °C [-13 °F to 212 °F] RoHs compliant (lead-free)

📥 Download Datasheet

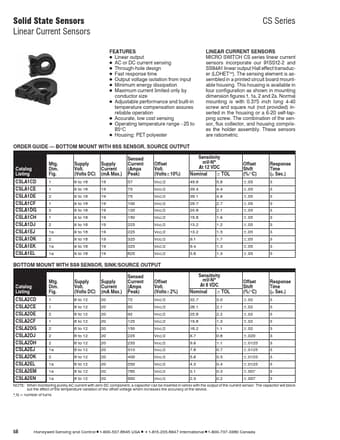

Preview of CSLA1CD PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CSLA1CD
Manufacturer
Honeywell
File Size
783.51 KB
Datasheet
CSLA1CD-Honeywell.pdf
Description
Linear Current Sensors
