SD5630 Datasheet - Honeywell

Optoschmitt Detector

SD5630 Features

* TO-46 metal can package

* 6¡ (nominal) acceptance angle

* TTL/LSTTL/CMOS compatible

* High noise immunity output

* Buffer (SD5620) or inverting (SD5630) logic available

* Two sensitivity ranges

* Mechanically and spectrally matched to SE3450/

SD5630 General Description

The SD5620/5630 series is family of single chip Optoschmitt IC detectors mounted in a TO-46 metal can package. The photodetector consists of a photodiode, amplifier, voltage regulator, Schmitt trigger and an NPN output transistor with a 10 kì (nominal) pull-up resistor. Output rise and fall times ar.

SD5630 Datasheet (554.33 KB)

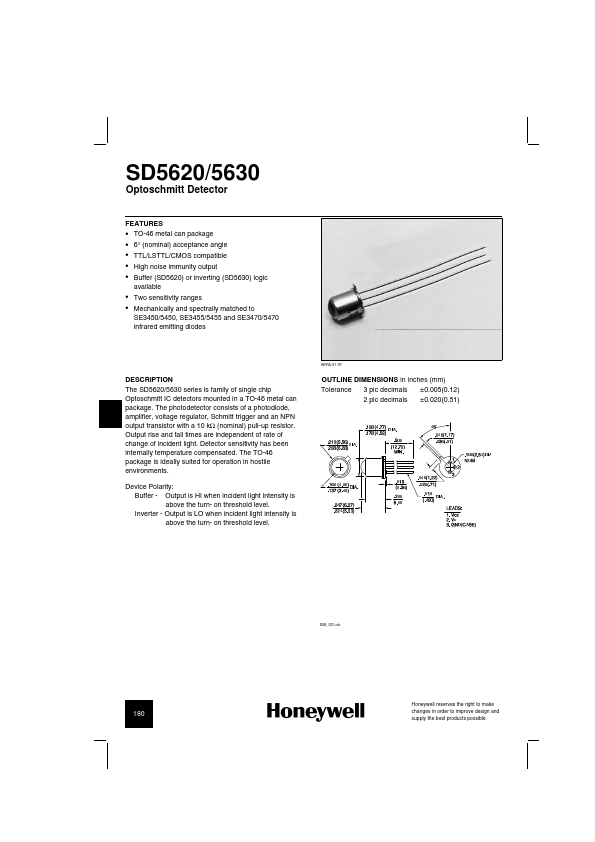

SD5630 Datasheet Preview — Preview of SD5630 PDF

Datasheet Details

Part number:

SD5630

Manufacturer:

Honeywell

File Size:

554.33 KB

Description:

Optoschmitt detector.
