CS3205A8

Silicon N-Channel Power MOSFET

CS3205A8 Features

* l Fast Switching l Low ON Resistance(Rdson≤8mΩ) l Low Gate Charge (Typical Data:75nC) l Low Reverse transfer capacitances(Typical:75pF) l 100% Single Pulse avalanche energy Test Applications: Power switch circuit of adaptor and charger. Absolute(Tc= 25℃ unless otherwise specified): Symbol Paramet

CS3205A8 General Description

CS3205A8, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and .

CS3205A8 Datasheet (426.66 KB)

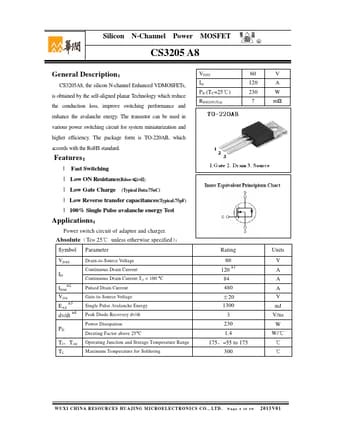

Preview of CS3205A8 PDF

Datasheet Details

Part number:

CS3205A8

Manufacturer:

Huajing Microelectronics

File Size:

426.66 KB

Description:

Silicon n-channel power mosfet.
