H7806 - 3-TERMINAL FIXED VOLTAGE REGULATOR

Product Overview

Huashan

Datasheet Details

Part number	H7806
Manufacturer	Huashan
File Size	341.04 KB
Description	3-TERMINAL FIXED VOLTAGE REGULATOR
Datasheet	H7806 Datasheet

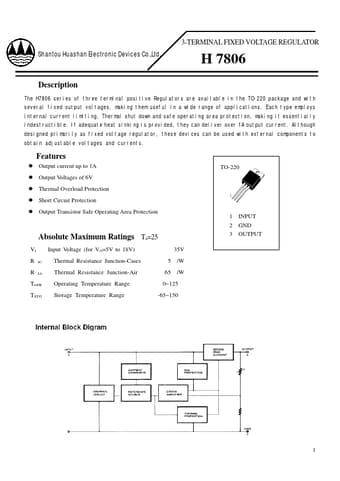

Additional preview pages of the H7806 datasheet.

Product details

Description

The H7806 series of three terminal positive Regulators are available in the TO-220 package and with several fixed output voltages, making them useful in a wide range of applications.

Features

Output current up to 1A Output Voltages of 6V Thermal Overload Protection Short Circuit Protection Output Transistor Safe Operating Area Protection Absolute Maximum Ratings Ta=25 VI Input Voltage (for VO=5V to 18V) 35V R JC Thermal Resistance Junction-Cases 5 /W R JA Thermal Resistance Junction-Air 65 /W TOPR Operating Temperature Range 0~125 TSTG Storage Temperature Range -65~150 TO-220 1 INPUT 2 GND 3 OUTPUT 1 Shantou Huashan Electronic Devices Co. ,Ltd. H 7806 Refer to test cir.
