H7806A - 3-TERMINAL FIXED VOLTAGE REGULATOR

Datasheet Summary

Features

  • l Output current up to 1A l Output Voltages of 6V l Thermal Overload Protection l Short Circuit Protection l Output Transistor Safe Operating Area Protection Absolute Maximum Ratings Ta=25 VI Input Voltage (for VO=5V to 18V) R JC Thermal Resistance Junction-Cases 35V 5 /W R JA Thermal Resistance Junction-Air 65 /W TOPR Operating Temperature Range 0~125 TSTG Storage Temperature Range -65~150 TO-220 1 INPUT 2 GND 3 OUTPUT 1 Shantou Huashan Electronic Devices Co. ,Ltd. Refer to test circ.

📥 Download Datasheet

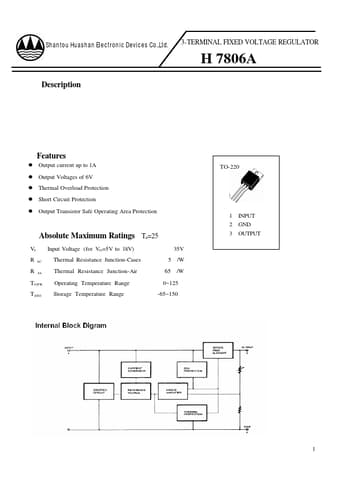

Datasheet preview – H7806A

Datasheet Details

Part number H7806A
Manufacturer Huashan
File Size 230.35 KB
Description 3-TERMINAL FIXED VOLTAGE REGULATOR
Datasheet download datasheet H7806A Datasheet
Additional preview pages of the H7806A datasheet.

📁 Similar Datasheet

  • H7806AA - 3-TERMINAL POSITIVE VOLTAGE REGULATOR (Hi-Sincerity Mocroelectronics)
  • H7806AE - 3-TERMINAL POSITIVE VOLTAGE REGULATOR (Hi-Sincerity Mocroelectronics)
  • H7806AI - 3-TERMINAL POSITIVE VOLTAGE REGULATOR (Hi-Sincerity Mocroelectronics)
  • H7806AJ - 3-TERMINAL POSITIVE VOLTAGE REGULATOR (Hi-Sincerity Mocroelectronics)
  • H7806AM - Low Current Positive Voltage Regulator Of Surface Mount Device (Hi-Sincerity Mocroelectronics)
  • H7806BA - 3-TERMINAL POSITIVE VOLTAGE REGULATOR (Hi-Sincerity Mocroelectronics)
  • H7806BE - 3-TERMINAL POSITIVE VOLTAGE REGULATOR (Hi-Sincerity Mocroelectronics)
  • H7806BI - 3-TERMINAL POSITIVE VOLTAGE REGULATOR (Hi-Sincerity Mocroelectronics)
  • H7806BJ - 3-TERMINAL POSITIVE VOLTAGE REGULATOR (Hi-Sincerity Mocroelectronics)
  • H7806BM - Low Current Positive Voltage Regulator Of Surface Mount Device (Hi-Sincerity Mocroelectronics)
Other Datasheets by Huashan
  • H7806 - 3-TERMINAL FIXED VOLTAGE REGULATOR
  • H7806F - 3-TERMINAL FIXED VOLTAGE REGULATOR
  • H7805 - 3-TERMINAL FIXED VOLTAGE REGULATOR
  • H7805F - 3-TERMINAL FIXED VOLTAGE REGULATOR
  • H7805W - 3-TERMINAL FIXED VOLTAGE REGULATOR
  • H7808 - 3-TERMINAL FIXED VOLTAGE REGULATOR
  • H7808F - 3-TERMINAL FIXED VOLTAGE REGULATOR
  • H7809 - 3-TERMINAL FIXED VOLTAGE REGULATOR

Full PDF Text Transcription

Click to expand full text
Shantou Huashan Electronic Devices Co.,Ltd. 3-TERMINAL FIXED VOLTAGE REGULATOR H 7806A Description Features l Output current up to 1A l Output Voltages of 6V l Thermal Overload Protection l Short Circuit Protection l Output Transistor Safe Operating Area Protection Absolute Maximum Ratings Ta=25 VI Input Voltage (for VO=5V to 18V) R JC Thermal Resistance Junction-Cases 35V 5 /W R JA Thermal Resistance Junction-Air 65 /W TOPR Operating Temperature Range 0~125 TSTG Storage Temperature Range -65~150 TO-220 1 INPUT 2 GND 3 OUTPUT 1 Shantou Huashan Electronic Devices Co.,Ltd. Refer to test circuit, H 7806A 2 Shantou Huashan Electronic Devices Co.,Ltd. H 7806A 12 3 4 56 3 Shantou Huashan Electronic Devices Co.,Ltd.
