HCN2C60 - Silicon Controlled Rectifier

Description

Sensitive triggering SCR is suitable for the application where gate current limited such as small motor control, gate driver for large SCR, sensing and detecting circuits.

Absolute Maximum Ratings（Ta=25℃ unless otherwise specified） Tstg Storage Temperature ------------------

Features

  • s.
  • Repetitive Peak Off-State Voltage : 600V.
  • R. M. S On-State Current(IT(RMS)=1.5A).
  • Low On-State Voltage (1.2V(Typ. )@ ITM).
  • General.

📥 Download Datasheet

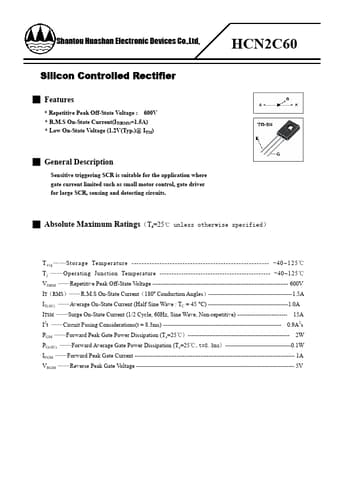

Datasheet preview – HCN2C60

Datasheet Details

Part number HCN2C60
Manufacturer Huashan
File Size 174.08 KB
Description Silicon Controlled Rectifier
Datasheet download datasheet HCN2C60 Datasheet
Additional preview pages of the HCN2C60 datasheet.

📁 Similar Datasheet

  • HCN3904 - GENERAL PURPOSE TRANSISTOR (HOTTECH)
  • HCNR200 - High-Linearity Analog Optocouplers (Broadcom)
  • HCNR200 - High-Linearity Analog Optocouplers (AVAGO)
  • HCNR201 - High-Linearity Analog Optocouplers (Broadcom)
  • HCNR201 - High-Linearity Analog Optocouplers (AVAGO)
  • HCNW135 - High-Speed Optocouplers (Broadcom)
  • HCNW135 - High Speed Optocouplers (HP)
  • HCNW135 - High Speed Optocouplers (AVAGO)
  • HCNW136 - High-Speed Optocouplers (Broadcom)
  • HCNW136 - High Speed Optocouplers (HP)
Other Datasheets by Huashan

    Full PDF Text Transcription

    Click to expand full text
    Shantou Huashan Electronic Devices Co.,Ltd. HCN2C60 Silicon Controlled Rectifier █ Features * Repetitive Peak Off-State Voltage : 600V * R.M.S On-State Current(IT(RMS)=1.5A) * Low On-State Voltage (1.2V(Typ.)@ ITM) █ General Description Sensitive triggering SCR is suitable for the application where gate current limited such as small motor control, gate driver for large SCR, sensing and detecting circuits. █ Absolute Maximum Ratings（Ta=25℃ unless otherwise specified） Tstg——Storage Temperature ------------------------------------------------------ -40~125℃ Tj ——Operating Junction Temperature ---------------------------------------------- -40~125℃ VDRM ——Repetitive Peak Off-State Voltage -------------------------------------------------------------------- 600V IT（RMS）——R.M.
