HGK390N25S - 250V N-Ch Power MOSFET

📥 Download Datasheet

Datasheet preview – HGK390N25S

Datasheet Details

Part number HGK390N25S
Manufacturer Hunteck
File Size 1.03 MB
Description 250V N-Ch Power MOSFET
Datasheet download datasheet HGK390N25S Datasheet

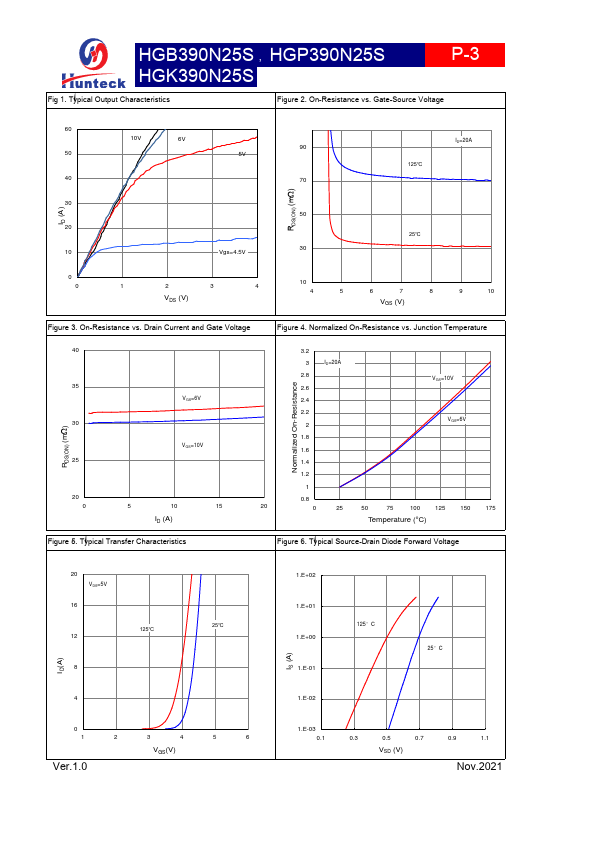

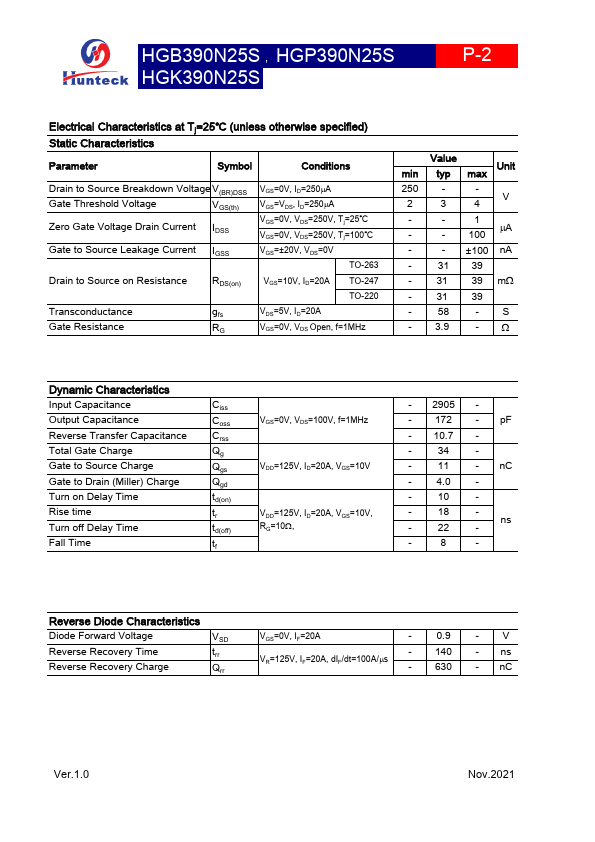

Additional preview pages of the HGK390N25S datasheet.

📁 Similar Datasheet

  • HGK3AB101 - High Voltage Ceramic Disc Capacitors (WANMING)
  • HGK3AB102 - High Voltage Ceramic Disc Capacitors (WANMING)
  • HGK3AB102KA2B - High Voltage Ceramic Disc Capacitors (WANMING)
  • HGK3AB103 - High Voltage Ceramic Disc Capacitors (WANMING)
  • HGK3AB121 - High Voltage Ceramic Disc Capacitors (WANMING)
  • HGK3AB122 - High Voltage Ceramic Disc Capacitors (WANMING)
  • HGK3AB151 - High Voltage Ceramic Disc Capacitors (WANMING)
  • HGK3AB152 - High Voltage Ceramic Disc Capacitors (WANMING)
  • HGK3AB181 - High Voltage Ceramic Disc Capacitors (WANMING)
  • HGK3AB182 - High Voltage Ceramic Disc Capacitors (WANMING)
Other Datasheets by Hunteck

Full PDF Text Transcription

Click to expand full text
HGB390N25S , HGP390N25S P-1 HGK390N25S 250V N-Ch Power MOSFET Feature ◇ High Speed Power Smooth Switching ◇ Enhanced Body diode dv/dt capability ◇ Enhanced Avalanche Ruggedness ◇ 100% UIS Tested, 100% Rg Tested ◇ Lead Free VDS RDS(on),typ ID (Sillicon Limited) 250 V 31 mW 50 A Application ◇ Synchronous Rectification in SMPS ◇ Hard Switching and High Speed Circuit ◇ Power Tools ◇ UPS TO-220 ◇ Motor Control TO-263 Drain Pin2 Gate Pin 1 Part Number Package Marking Src HGB390N25S TO-263 GB390N25S TO-247 Pin3 HGP390N25S TO-220 GP390N25S HGK390N25S TO-247 GK390N25S Absolute Maximum Ratings at Tj=25℃ (unless otherwise specified) Parameter Symbol Conditions Continuous Drain Current (Silicon Limited) Drain to Source Voltage Gate to Source Voltage Pulsed Drain Current
