GL3812 Datasheet - Hynix Semiconductor

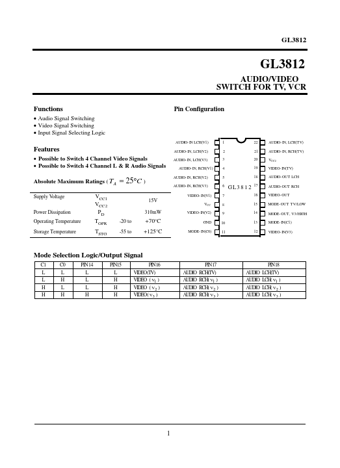

GL3812 AUDIO/VIDEO SWITCH

No. 1 2 3 Name AUDIO-IN ( L1 ) AUDIO-IN ( L 2 ) AUDIO-IN ( L 3 ) Explanation Input of L-Ch Audio Signal for Video ( V1 ). Input of L-Ch Audio Signal for Video ( V2 ). Input of L-Ch Audio Signal for Video ( V3 ). No. 13 14 Name MODE-IN (C1) MODE-OUT ( V3 /H) Explanation Input for Mode Selection .

GL3812 Features

* Possible to Switch 4 Channel Video Signals

* Possible to Switch 4 Channel L & R Audio Signals Absolute Maximum Ratings ( T A Supply Voltage Power Dissipation Operating Temperature Storage Temperature AUDIO-IN, LCH(V2) AUDIO-IN, LCH(V3) AUDIO-IN, RCH(V1) AUDIO-IN, RCH(V2) AUDIO-IN,

GL3812 Datasheet (108.74 KB)

Preview of GL3812 PDF
GL3812 Datasheet Preview Page 2 GL3812 Datasheet Preview Page 3

Datasheet Details

Part number:

GL3812

Manufacturer:

Hynix Semiconductor

File Size:

108.74 KB

Description:

Audio/video switch.
