GL382 - IrDA-Based SIR System-Conforming Infrared Emitting Diode

GL382 Description

GL382 GL382 s .

GL382 Features

* 1. Compact 3 φ resin mold package 2. Peak emitting wavelength conforming to SIR system based on IrDA ( λ p=880 nm [I F=50mA] ) 3. Narrow beam angle (Half intensity angle : TYP. ± 17˚ ) 4. High speed response (Cut-off frequency fc : TYP.12MHz) IrDA-Based SIR System-Conforming Infrared Emitting Diode

GL382 Applications

* 1. Portable information terminal equipment 2. Personal computers 3. Printers 0.5 MIN. 0.15 2 - 0.5 + - 0.1 14.2 ± 1.0 2 (2.54) 1 Anode 2 Cathode s Absolute Maximum Ratings Parameter Forward current
* 1 Peak forward current Reverse voltage Operating temperature Storage temperature
* 2 Sold

📥 Download Datasheet

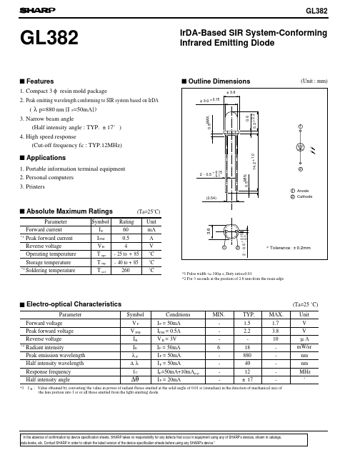

Preview of GL382 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GL382
Manufacturer
Sharp Electrionic Components
File Size
31.32 KB
Datasheet
GL382_SharpElectrionicComponents.pdf
Description
IrDA-Based SIR System-Conforming Infrared Emitting Diode
