HMT112U7TFR8C - 240pin DDR3 SDRAM Registered DIMM

Product Overview

Hynix Semiconductor

Datasheet Details

Part number	HMT112U7TFR8C
Manufacturer	Hynix Semiconductor
File Size	773.95 KB
Description	240pin DDR3 SDRAM Registered DIMM
Datasheet	HMT112U7TFR8C Datasheet
Note	This datasheet PDF includes multiple part numbers: HMT112U7TFR8C, HMT112U6TFR8C. Please refer to the document for exact specifications by model.

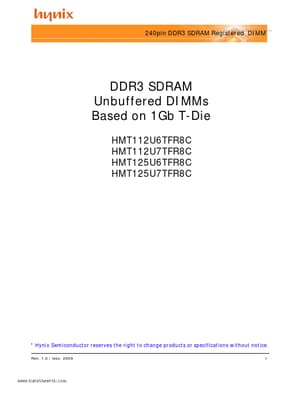

Additional preview pages of the HMT112U7TFR8C datasheet.

Product details

Description

Hynix Unbuffered DDR3 SDRAM DIMMs (Unbuffered Double Data Rate Synchronous DRAM Dual In-Line Memory Modules) are low power, high-speed operation memory modules that use Hynix DDR3 SDRAM devices.

Features

VDD=1.5V +/- 0.075V.
VDDQ=1.5V +/- 0.075V.
VDDSPD=3.0V to 3.6V.
Functionality and operations comply with the DDR3 SDRAM datasheet.
8 internal banks.
Data transfer rates: PC3-10600, PC3-8500, or PC3-6400.
Bi-directional Differential Data Strobe.
8 bit pre-fetch.
Burst Length (BL) switch on-the-fly: BL 8 or BC (Burst Chop) 4.
Supports ECC error correction and detection.
On Die Termination (ODT) supp.
