*5.2V input ( *5.2V) Ground (GND) *V Input ( *V) Reference Voltage Output (REF OUT) Bias I Adjust (BIAS I) Modulation I Adjust (MOD I) ECL Input Waveform (RF IN) Laser Diode Current Driver (RF OUT) HY6210 Pin 10 Pins 9, 13, 21 Pin 8 Pin 6 Pin 5 Pin 4 Pin 12 Pin 22 Orde

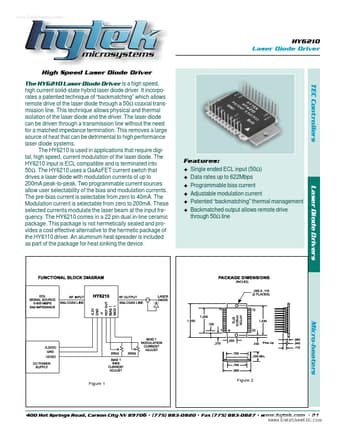

www.DataSheet4U.com HY6210 Laser Diode Driver High Speed Laser Diode Driver The HY6210 Laser Diode Driver is a high speed, high current solid-state hybrid laser diode driver.
It incorporates a patented technique of “backmatching” which allows remote drive of the laser diode through a 50Ω coaxial transmission line.
This technique allows physical and thermal isolation of the laser diode and the driver.
The laser diode can be driven through a transmission line without the need for a matched imped
HY6210 Features
* ✦ ✦ ✦ ✦ ✦ ✦ Single ended ECL input (50Ω) Data rates up to 622Mbps Programmable bias current Adjustable modulation current Patented “backmatching” thermal management Backmatched output allows remote drive through 50Ω line Laser Diode Drivers Micro-heaters Figure 1 Figure 2 400 Hot Springs Road,
Datasheet Details
HY6210
Hytek Microsystems
251.81 KB
200ma high speed laser diode driver.
