HY62256A-I

32Kx8bit CMOS SRAM

HY62256A-I Features

* Fully static operation and Tri-state output TTL compatible inputs and outputs Low power consumption Battery backup(L/LL-part) - 2.0V(min.) data retention

* Standard pin configuration - 28 pin 600 mil PDIP - 28 pin 330mil SOP - 28 pin 8x13.4 mm TSOP-I (

HY62256A-I General Description

The HY62256A/ HY62256A-I is a high-speed, low power and 32,786 x 8-bits CMOS Static Random Access Memory fabricated using Hyundai's high performance CMOS process technology. The HY62256A/ HY62256A-I has a data retention mode that guarantees data to remain valid at the minimum power supply voltage of.

HY62256A-I Datasheet (107.52 KB)

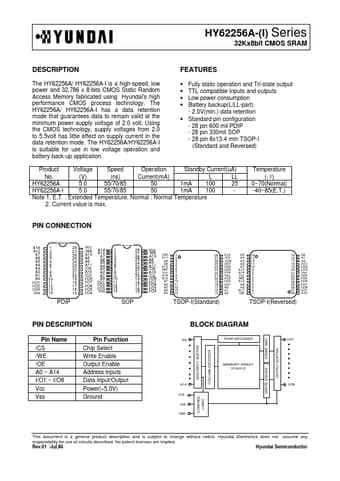

Preview of HY62256A-I PDF

Datasheet Details

Part number:

HY62256A-I

Manufacturer:

Hyundai

File Size:

107.52 KB

Description:

32kx8bit cmos sram.
