HY62256ALP, HY62256A Datasheet - Hyundai

HY62256ALP 32K x 8-Bit CMOS SRAM

The HY62256A is a high-speed, low power and 32,786 x 8-bits CMOS Static Random Access Memory fabricated using Hyundai's high performance CMOS process technology. The HY62256A has a data retention mode that guarantees data to remain valid at the minimum power supply voltage of 2.0 volt. Using the CMO.

HY62256ALP Features

* Fully static operation and Tri-state output TTL compatible inputs and outputs Low power consumption Battery backup(L/LL-part) - 2.0V(min.) data retention

* Standard pin configuration - 28 pin 600 mil PDIP - 28 pin 330mil SOP - 28 pin 8x13.4 mm TSOP-I (Standard and Reversed)

HY62256A_Hyundai.pdf

This datasheet PDF includes multiple part numbers: HY62256ALP, HY62256A. Please refer to the document for exact specifications by model.

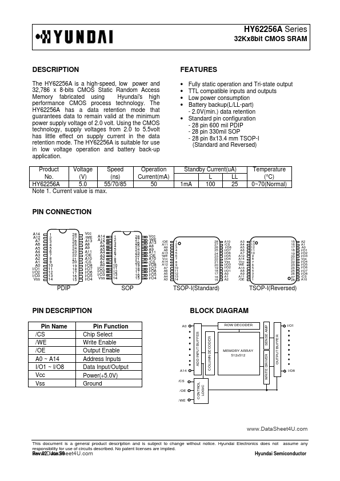

HY62256ALP Datasheet Preview Page 2 HY62256ALP Datasheet Preview Page 3

Datasheet Details

Part number:

HY62256ALP, HY62256A

Manufacturer:

Hyundai

File Size:

133.92 KB

Description:

32k x 8-bit cmos sram.

Note:

This datasheet PDF includes multiple part numbers: HY62256ALP, HY62256A.
Please refer to the document for exact specifications by model.
