AIP31107

64CH COMMON DRIVER

AIP31107 Features

* Dot matrix LCD common driver with 64 channel output

* 64-bit shift register at internal LCD driver circuit

* Internal timing generator circuit for dynamic display

* Selection of master/slave mode

* Applicable LCD duty: 1/48, 1/64, 1/96, 1/128

* Power supply voltage: + 5V 

AIP31107 General Description

The AIP31107 is an LCD driver LSI with 64 channel outputs for dot matrix liquid crystal graphic display systems. This device provides 64 shift registers and 64 output drivers. It generates the timing signal to control the AIP31108 ( 64 channel segment driver). The AIP31107 is fabricated by low powe.

AIP31107 Datasheet (308.39 KB)

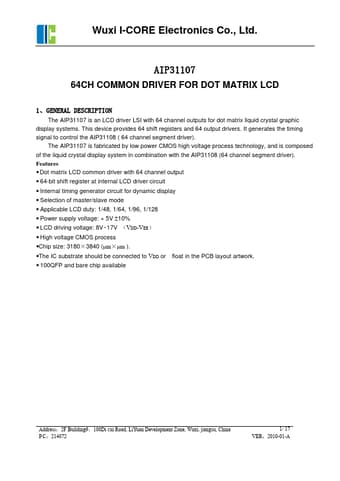

Preview of AIP31107 PDF

Datasheet Details

Part number:

AIP31107

Manufacturer:

I-CORE

File Size:

308.39 KB

Description:

64ch common driver.
