AIP31108, AIP31108-I Datasheet - I-CORE

AIP31108 64CH COMMON DRIVER

The AIP31108 is a LCD driver LSl with 64channel output for dot matrix liquid crystal graphic display systems. This device consists of the display RAM, 64bit data latch, 64 bit drivers and decoder logics. It has the internal display RAM for storing the display data transferred from a 8 bit micro cont.

AIP31108 Features

* Dot matrix LCD segment driver with 64 channel output

* Input and Output signal - Input: 8 bit parallel display data Control signal from MPU Divided bias voltage (V0R, V0L, V2R, V2L,V3R,V3L, V5R,V5L) - Output: 64 channel for LCD driving.

* Display data is stored in display data RAM from

AIP31108-I-CORE.pdf

This datasheet PDF includes multiple part numbers: AIP31108, AIP31108-I. Please refer to the document for exact specifications by model.

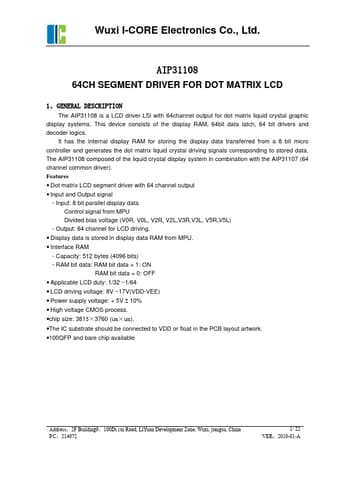

AIP31108 Datasheet Preview Page 2 AIP31108 Datasheet Preview Page 3

Datasheet Details

Part number:

AIP31108, AIP31108-I

Manufacturer:

I-CORE

File Size:

301.71 KB

Description:

64ch common driver.

Note:

This datasheet PDF includes multiple part numbers: AIP31108, AIP31108-I.
Please refer to the document for exact specifications by model.
