AiP74HCT595, AiP74HC595-I - Serial or Parallel-out Shift Register

I-CORE

AiP74HCT595 Datasheet Preview — This datasheet PDF includes multiple part numbers: AiP74HCT595, AiP74HC595-I. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	AiP74HCT595, AiP74HC595-I
Manufacturer	I-CORE
File Size	937.92 KB
Description	Serial or Parallel-out Shift Register
Datasheet	AiP74HC595-I-CORE.pdf
Note	This datasheet PDF includes multiple part numbers: AiP74HCT595, AiP74HC595-I. Please refer to the document for exact specifications by model.

AiP74HCT595 Product details

Description

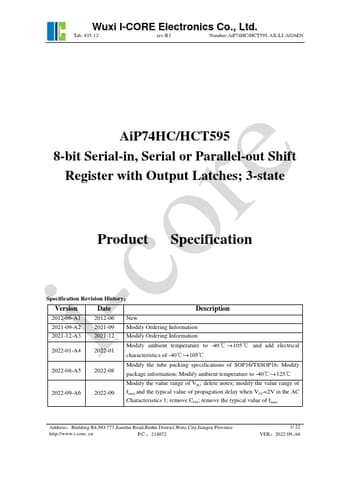

2012-06-A1 2012-06 New 2021-09-A2 2021-09 Modify Ordering Information 2021-12-A3 2021-12 Modify Ordering Information 2022-01-A4 2022-01 Modify ambient temperature to -40℃~+105℃ and add electrical characteristics of -40℃~+105℃ 2022-08-A5 2022-08 Modify the tube packing specifications of SOP16/TSSOP16; Modify package information; Modify ambient temperature to -40℃~+125℃ 2022-09-A6 2022-09 Modify the value range of VIL; delete notes; modify the value range of fmax and the typical value

Features

a serial input.
(DS) and a serial output (Q7S) to enable cascading and an asynchronous reset MR input. A LOW on MR will reset the shift register. Data is shifted on the LOW-to-HIGH transitions of the SHCP input. The data in the shift register is transferred to the storage register on a LOW-to-HIGH transition of the STCP input. If both clocks are connected together, the shift register will always be one clock pulse ahead of the storage i-core.
register. Data in t.
