IQX160 - IQX Series

Product Overview

I-CUBE

📥 Download Datasheet

IQX160 IQX Series by I-CUBE - Datasheet Preview — Datasheet preview – IQX160

Datasheet Details

Part number	IQX160
Manufacturer	I-CUBE
File Size	1.45 MB
Description	IQX Series
Datasheet	IQX160 Datasheet
Note	This datasheet PDF includes multiple part numbers: IQX160, IQX320_I. Please refer to the document for exact specifications by model.

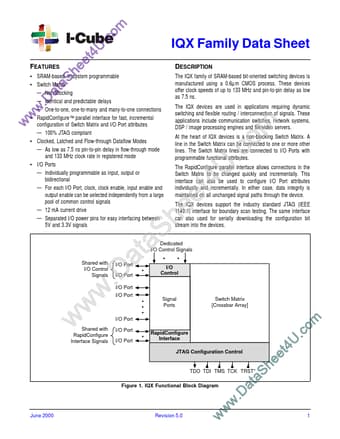

Additional preview pages of the IQX160 datasheet.

Product details

Description

The IQX family of SRAM-based bit-oriented switching devices is manufactured using a 0.6µ m CMOS process.

Features

SRAM-based, in-system programmable.
Switch Matrix.
Non-Blocking.
Identical and predictable delays.
One-to-one, one-to-many and many-to-one connections w.
RapidConfigure™ parallel interface for fast, incremental configuration of Switch Matrix and I/O Port attributes.
100% JTAG compliant.
Clocked, Latched and Flow-through Dataflow Modes.
As low as 7.5 ns pin-to-pin delay in flow-through mode and 133 MHz clock rate.
