IQXC-140 - Quartz Crystal

IQXC-140 Description

ISSUE 1; July 2016 .
The IQXC-140 is a low profile SMD AT-cut quartz crystal with a thermally coupled temperature sensor in a ceramic package with a 2.

IQXC-140 Features

* Low ageing Excellent shock and vibration performance Thermally coupled temperature sensor Frequency Parameters Frequency 19.2MHz to 52.0MHz Frequency Tolerance ±10.00ppm to ±50.00ppm Tolerance Condition @ 25°C ±2°C Frequency Stability ±12.00ppm to ±50.00ppm Ageing ±2ppm max per year @ 25

📥 Download Datasheet

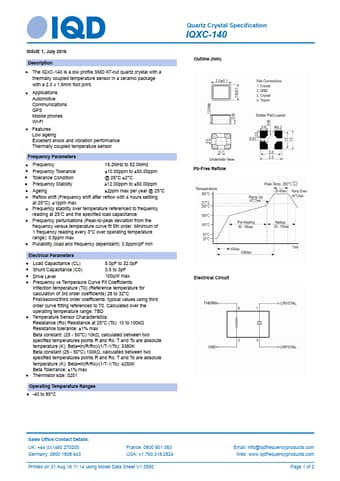

Preview of IQXC-140 PDF
datasheet Preview Page 2

Datasheet Details

Part number
IQXC-140
Manufacturer
IQD
File Size
129.14 KB
Datasheet
IQXC-140-IQD.pdf
Description
Quartz Crystal
