AT2722

38V 5A Synchronous Buck Converter

AT2722 Features

* Wide 8V to 38V Operating Input Range Integrated 80mΩ Power MOSFET Switches Output Adjustable from VFB(1V) to 20V Up to 95% Efficiency Internal Soft-Start Stable with Low ESR Ceramic Output Capacitors Fixed 160KHz Frequency Cycle-by-Cycle Over Current Protection Input Under/Over Voltage Lockout APPLI

AT2722 General Description

The AT2722 is a monolithic synchronous buck regulator. The device integrates internal high side and external low side power MOSFETs, and provides 5A of continuous load current over a wide input voltage of 8V to 38V. Current mode control provides fast transient response and cycle-by-cycle current lim.

AT2722 Datasheet (133.82 KB)

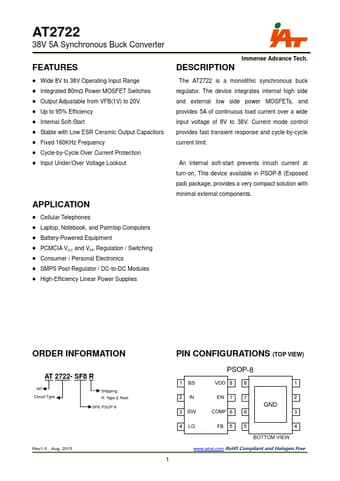

Preview of AT2722 PDF

Datasheet Details

Part number:

AT2722

Manufacturer:

IAT

File Size:

133.82 KB

Description:

38v 5a synchronous buck converter.
