AT2596

3A Step Down Voltage Switching Regulators

AT2596 Features

* Standard PSOP-8/TO-220-5L /TO-263-5L Package Adjustable Output Versions Adjustable Version Output Voltage Range 1.23V to 37V VOUT Accuracy is to ± 3% Under Specified Input Voltage the Output Load Conditions Input Voltage Range Up to 40V Requires Only 4 External Components with High Efficiency TTL Sh

AT2596 General Description

The AT2596 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 3A load with excellent line and load regulation. Requiring a minimum number of external components, these regu.

AT2596 Datasheet (1.16 MB)

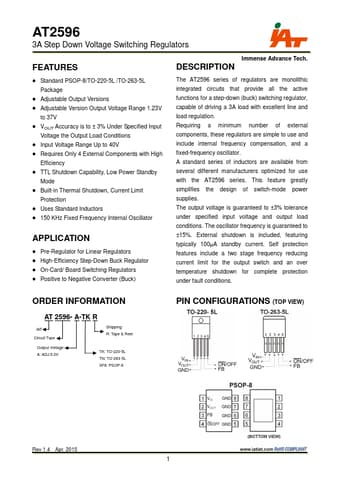

AT2596 Datasheet Preview — Preview of AT2596 PDF

Datasheet Details

Part number:

AT2596

Manufacturer:

IAT

File Size:

1.16 MB

Description:

3a step down voltage switching regulators.
