ICM205B

VGA/QVGA CMOS image sensor

ICM205B Features

* 307,200 (640x480) pixels, VGA format, used with 1/4” optical system Correlated double sampling On-chip 9-bit ADC On-chip digital signal processing

* Real-time color interpolation

* Programmable/Automatic exposure control

* Programmable/

ICM205B General Description

This is a single-chip digital color imaging device. It incorporates a 640 x 480 sensor array operating at max. 30 frames per second in progressive manner. Each pixel is covered by a color filter, which formed a so-called Bayer pattern. Correlated double sampling is performed by the internal ADC and .

ICM205B Datasheet (589.17 KB)

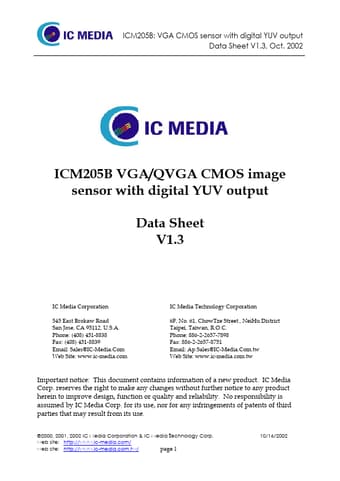

Preview of ICM205B PDF

Datasheet Details

Part number:

ICM205B

Manufacturer:

IC Media

File Size:

589.17 KB

Description:

Vga/qvga cmos image sensor.
ICM205B: VGA CMOS sensor with digital YUV output Data Sheet V1.3, Oct. 2002 ICM205B VGA/QVGA CMOS image sensor with digital YUV output Data Sheet V1..
