www.vishay.com ICM-2824, ICM-3528, ICM-4743 Vishay Dale High Current Common Mode Choke .

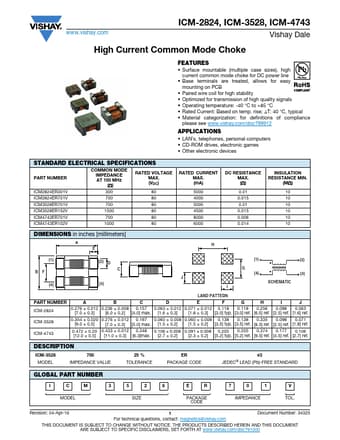

datasheet Preview Page 1 from Datasheet4u.com

ICM-2824-Vishay.pdf

ICM2824ER301V Datasheet Preview — This datasheet PDF includes multiple part numbers: ICM2824ER301V, ICM-2824. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ICM2824ER301V, ICM-2824

Manufacturer:

Vishay ↗

File Size:

89.96 KB

Description:

High-Current Choke

Note:

This datasheet PDF includes multiple part numbers: ICM2824ER301V, ICM-2824.
Please refer to the document for exact specifications by model.

Features

* Surface mountable (multiple case sizes), high current common mode choke for DC power line
* Base terminals are treated, allows for easy mounting on PCB
* Paired wire coil for high stability
* Optimized for transmission of high quality signals
* Operating tem

Applications

* LAN’s, telephones, personal computers
* CD-ROM drives, electronic games
* Other electronic devices STANDARD ELECTRICAL SPECIFICATIONS PART NUMBER COMMON MODE IMPEDANCE AT 100 MHz () RATED VOLTAGE MAX. (VDC) ICM2824ER301V 300 80 ICM2824ER701V 700 80 ICM3528ER701V
