ICL2001-23 - Low Noise Amplifier

Datasheet Summary

Description

Bias resistor of appropriate value connected to this pin externally controls the bias current in the circuit and thus the gain.

Ground connection.

Keep traces physically short and immediately connect to ground plane.

📥 Download Datasheet

ICL2001-23 Low Noise Amplifier by IC Microsystems - Datasheet Preview — Datasheet preview – ICL2001-23

Datasheet Details

Part number	ICL2001-23
Manufacturer	IC Microsystems
File Size	909.63 KB
Description	Low Noise Amplifier
Datasheet	ICL2001-23 Datasheet

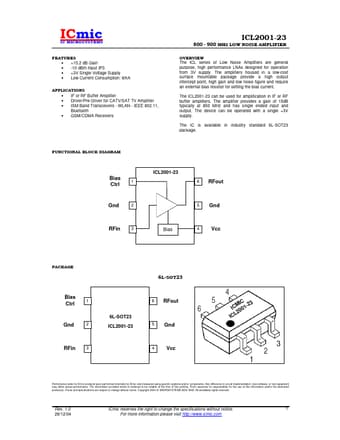

Additional preview pages of the ICL2001-23 datasheet.
