ICL3221EF - RS-232 Transmitters/Receivers

This page provides the datasheet information for the ICL3221EF, a member of the ICL3221EM RS-232 Transmitters/Receivers family.

Datasheet Summary

Description

.

.

2.

.

Features

  • of the ICL3221EM and ICL3221EF. Related Literature For a full list of related documents, visit our website:.
  • ICL3221EM, ICL3221EF device pages Features.
  • ESD protection for RS-232 I/O pins to ±15kV (IEC61000).
  • RS-232 compatible with VCC = 2.7V.
  • Meets EIA/TIA-232 and V.28/V.24 specifications at 3V.
  • Latch-up free.
  • On-chip voltage converters require only four external 0.1µF capacitors.
  • Manual and automatic powerdown features.
  • R.

📥 Download Datasheet

Datasheet preview – ICL3221EF

Datasheet Details

Part number ICL3221EF
Manufacturer Renesas
File Size 348.55 KB
Description RS-232 Transmitters/Receivers
Datasheet download datasheet ICL3221EF Datasheet
Additional preview pages of the ICL3221EF datasheet.

📁 Similar Datasheet

  • ICL3224 - RS-232 Transceiver (Intersil)
  • ICL3226 - RS-232 Transceiver (Intersil)
  • ICL3217E - +-15kV ESD Protected 3V to 5.5V Low Power 250kbps RS-232 Transmitters/Receivers (Intersil)
  • ICL3237 - RS-232 Transmitters/Receivers (Intersil)
  • ICL3238 - RS-232 Transceiver (Intersil)
  • ICL3244 - RS-232 Transceiver (Intersil)
  • ICL2001-23 - Low Noise Amplifier (IC Microsystems)
  • ICL232 - +5V Powered Dual RS-232 Transmitter/Receiver (Harris Corporation)
  • ICL501-1 - VRD/POL Inductor (ice Components)
  • ICL501-2 - VRD/POL Inductor (ice Components)
Other Datasheets by Renesas
  • ICL3221E - RS-232 transmitters/receivers
  • ICL3221EM - RS-232 Transmitters/Receivers
  • ICL3221 - RS-232 Transmitters/Receivers
  • ICL3222 - RS-232 Transmitters/Receivers
  • ICL3222E - RS-232 transmitters/receivers
  • ICL3223 - RS-232 Transmitters/Receivers
  • ICL3223E - RS-232 transmitters/receivers
  • ICL3224 - RS-232 Transceiver

Full PDF Text Transcription

Click to expand full text

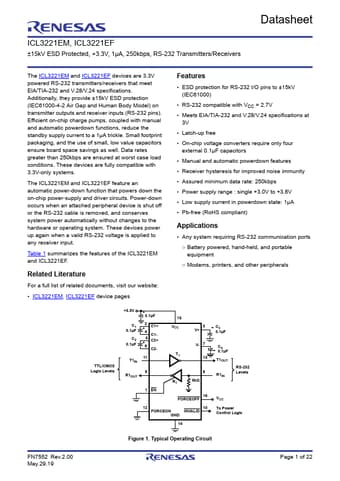

Datasheet ICL3221EM, ICL3221EF ±15kV ESD Protected, +3.3V, 1µA, 250kbps, RS-232 Transmitters/Receivers The ICL3221EM and ICL3221EF devices are 3.3V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V.28/V.24 specifications. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Efficient on-chip charge pumps, coupled with manual and automatic powerdown functions, reduce the standby supply current to a 1µA trickle. Small footprint packaging, and the use of small, low value capacitors ensure board space savings as well. Data rates greater than 250kbps are ensured at worst case load conditions. These devices are fully compatible with 3.3V-only systems.
