Datasheet ICL3221EM, ICL3221EF ±15kV ESD Protected, +3.3V, 1µA, 250kbps, RS-232 Transmitters/Receivers The ICL3221EM and ICL3221EF devices are 3.3V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V.28/V.24 specifications.

Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins).

Efficient on-chip charge pumps, coupled with manual and automatic powerdown functions, reduce the standby supp

ICL3221EM Features

* of the ICL3221EM and ICL3221EF. Related Literature For a full list of related documents, visit our website:

* ICL3221EM, ICL3221EF device pages Features

* ESD protection for RS-232 I/O pins to ±15kV (IEC61000)

* RS-232 compatible with VCC = 2.7V

* Meets EIA/TIA-232 a

ICL3221EM-Renesas.pdf

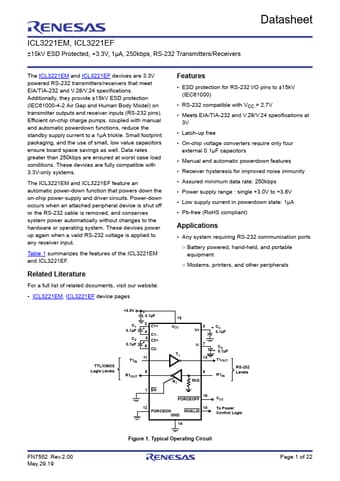

Preview of ICL3221EM PDF
