ICL3222E, ICL3221E Datasheet - Renesas

ICL3222E RS-232 transmitters/receivers

Datasheet ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, ICL3243E ±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transmitters/Receivers The ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, and ICL3243E are 3.0V to 5.5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V.28/V.24 specifications, even at VCC = 3.0V. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Target.

ICL3222E Features

* of the devices represented by this datasheet, and Application Note AN9863 summarizes the features of each device in the ICL32xxE 3V family. Features

* ESD protection for RS-232 I/O pins to ±15kV (IEC61000)

* Drop-in replacements for the MAX3221E, MAX3222E, MAX3223E, MAX3232E, MAX324

ICL3221E-Renesas.pdf

This datasheet PDF includes multiple part numbers: ICL3222E, ICL3221E. Please refer to the document for exact specifications by model.

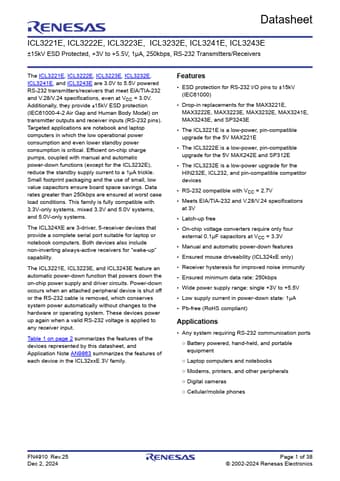

ICL3222E Datasheet Preview Page 2 ICL3222E Datasheet Preview Page 3

Datasheet Details

Part number:

ICL3222E, ICL3221E

Manufacturer:

Renesas ↗

File Size:

849.92 KB

Description:

Rs-232 transmitters/receivers.

Note:

This datasheet PDF includes multiple part numbers: ICL3222E, ICL3221E.
Please refer to the document for exact specifications by model.
