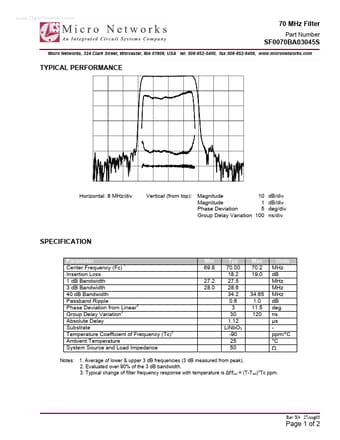

www.DataSheet4U.com 70 MHz Filter Part Number SF0070BA03045S Micro Networks, 324 Clark Street, Worcester, MA 01606, USA tel: 508-852-5400, fax:508-852-8456, www.micronetworks.com TYPICAL PERFORMANCE Horizontal: 8 MHz/div Vertical (from top): Magnitude 10 Magnitude 1 Phase Deviation 5 Group Delay Variation 100 dB/div dB/div deg/div ns/div SPECIFICATION Parameter Center Frequency (Fc) 1 Insertion Loss 1 dB Bandwidth 3 dB Bandwidth 40 dB Bandwidth Passband Ripple Phase Deviation from Linear2.
