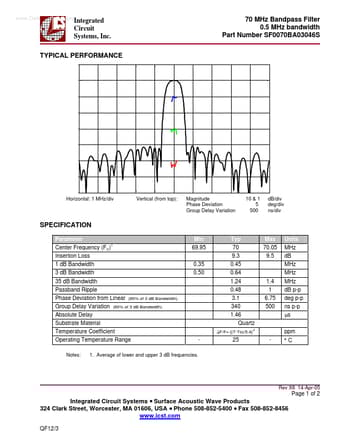

www.DataSheet4U.com Integrated Circuit Systems, Inc. 70 MHz Bandpass Filter 0.5 MHz bandwidth Part Number SF0070BA03046S TYPICAL PERFORMANCE Horizontal: 1 MHz/div Vertical (from top): Magnitude Phase Deviation Group Delay Variation 10 & 1 5 500 dB/div deg/div ns/div SPECIFICATION Parameter Center Frequency (FC)1 Insertion Loss 1 dB Bandwidth 3 dB Bandwidth 35 dB Bandwidth Passband Ripple Phase Deviation from Linear Group Delay Variation Absolute Delay Substrate Material Temperature Coef.
